COOLER MASTER ADDRESSABLE RGB LED CONTROLLER

Cooler Master ARGB LED Controller A1

LED Controller A1

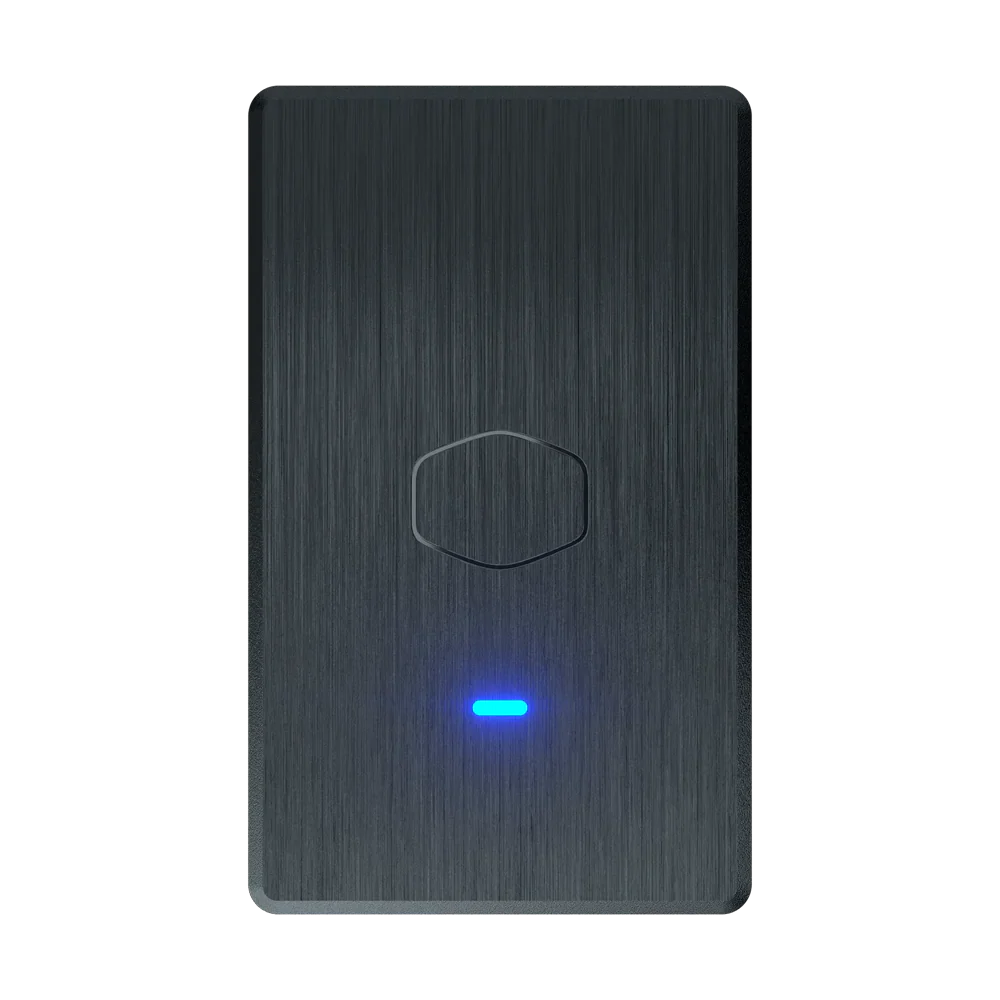

Cooler Master has engineered the new Addressable Gen 2 RGB LED Controller granting you the versatility to easily personalize your devices delivered to you in a small compact size.

Simple And Compact

No need to hassle with an ARGB capable motherboard or complex software. With 3 ARGB headers available, each header can connect up to 80 individual LEDs for a total of up to 240 LEDs.

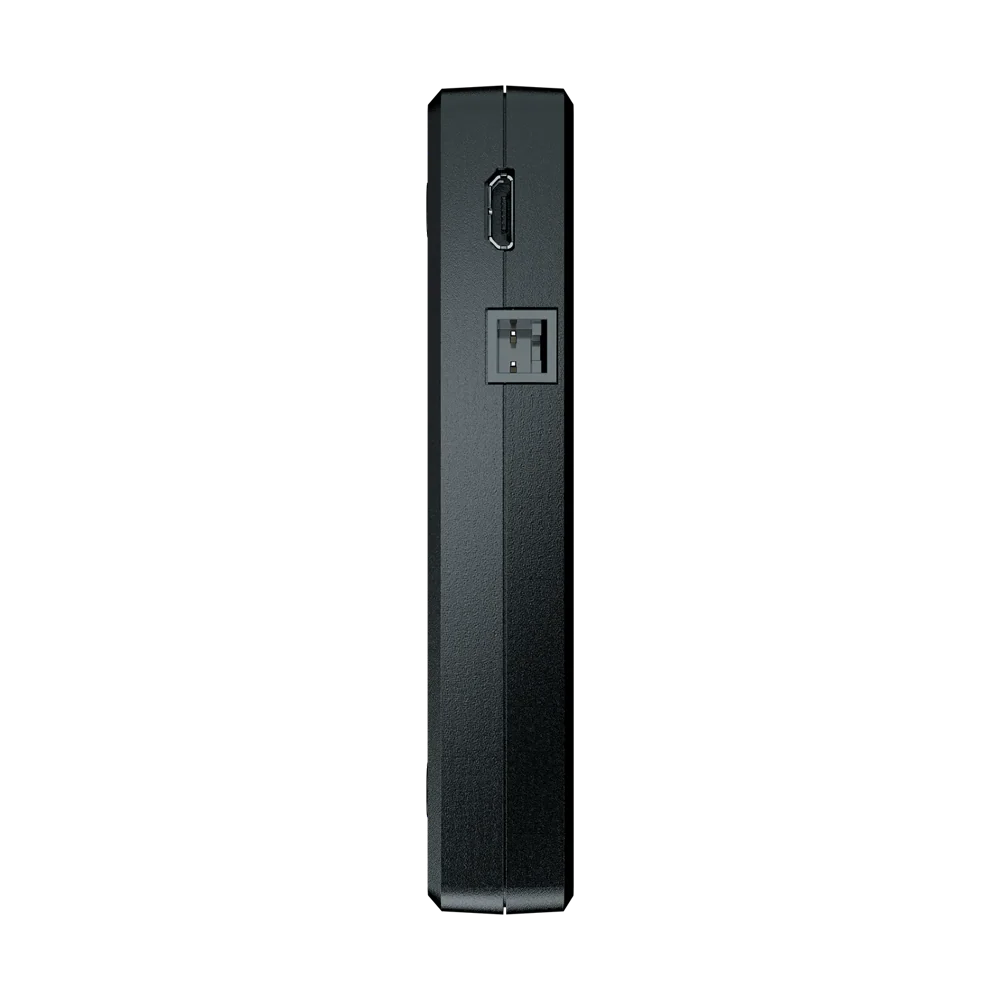

A. 9 Pin USB Connector 9 Pin USB Connector

B. 5V SATA Power Connector 5V SATA Power Connector

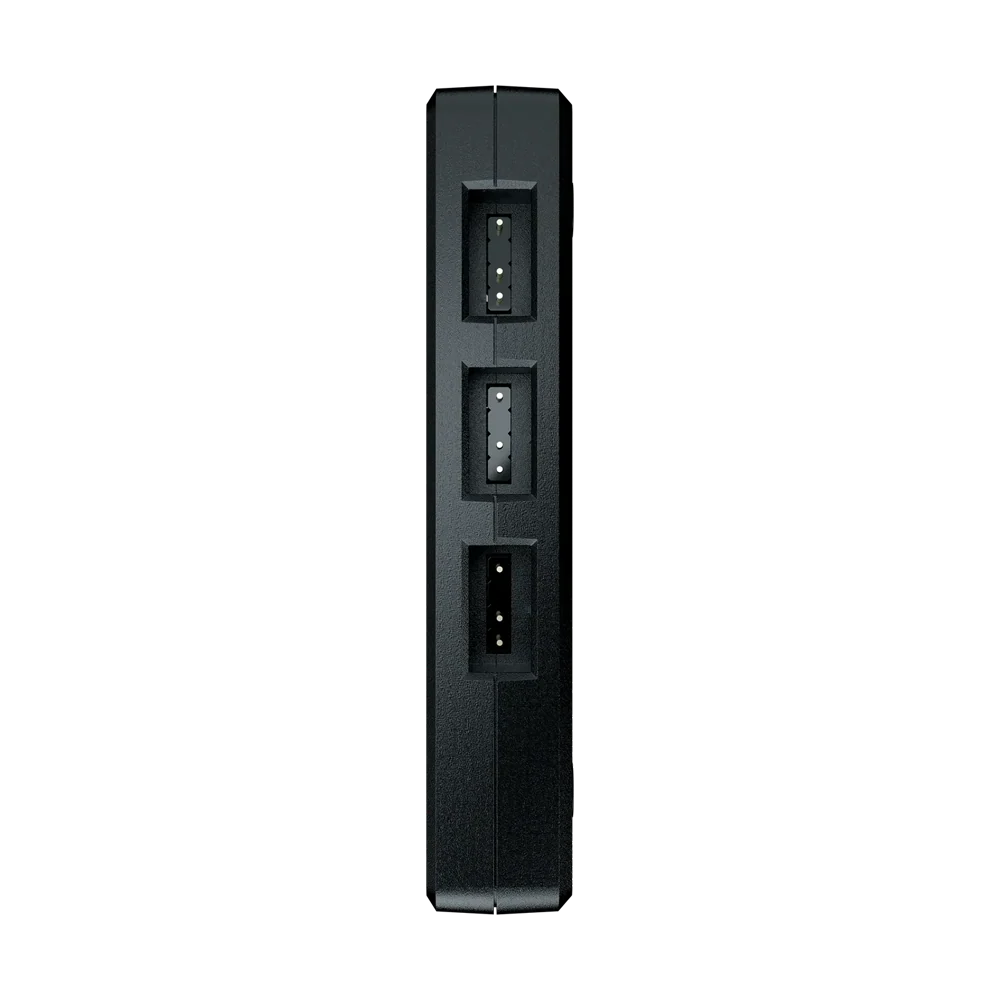

3. 5V 3 Pin ARGB Connector 5V 3 Pin ARGB Connector

Backwards Compatibility

Compatible with both Gen 2 ARGB and standard ARGB devices, connect all your devices with the simple touch of a button

New Addressable Gen 2 RGB

Addressable Gen 2 RGB controller works with Cooler Master’s MasterPlus+ software, allowing you to customize each individual LED’s color, effect, brightness, and more – all from an intuitive, convenient interface.

Specifications

• Product Number    :  MFY-ACBN-NNUNN-R2

• Color     : Black

• Material     : Plastic

• Dimensions (L x W x H)     : 84.7 x 51.7 x 15.3 mm / 3.3 x 2.0 x 0.6 inch

• Connector     : 3 ports x 3 Pin Addressable RGB

• Rated Voltage    :  5 VDC

• Safety Current     : 2.0 (1 port) / Total 4.5 A (3 port)

• Power Connector     : SATA

• Power Safety Current     : 4.5 A (Max)

• USB     : Micro USB x 1

• Weight     : 90g / 0.2lbs

• Cooler Type     : RGB Accessories
