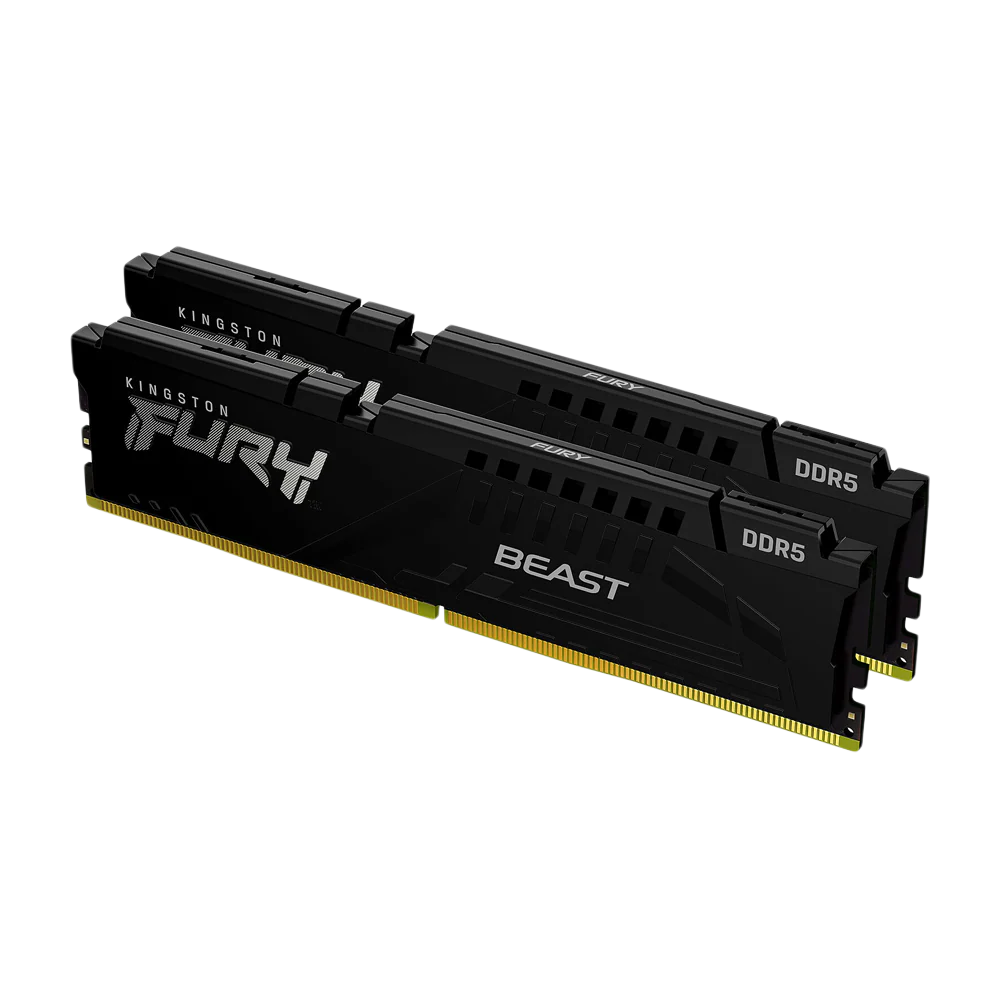

KINGSTON FURY BEAST 32GB (2x16GB) DDR5 6000MT/s CL36 Memory - Black

Key Features:

• 32GB (2x16GB)

• DDR5

• 6000MT/s

• CL36

Kingston FURY KF560C36BBE2K2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module.  Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0.  Total kit capacity is 32GB.  Each module has been tested to run at DDR5-6000 at a low latency timing of 36-44-44 at 1.35V.  The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V.  Each 288-pin DIMM uses gold contact fingers.  The JEDEC standard electrical and mechanical specifications.

DEFAULT FEATURES
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37” (34.9mm), w/heatsink

Specifications

• CL(IDD) : 40 cycles

• Row Cycle Time (tRCmin) : 48ns(min.)

• Refresh to Active/Refresh

• Command Time (tRFCmin) : 295ns(min.)

• Row Active Time (tRASmin) : 32ns(min.)

• UL Rating  : 94 V - 0

• Operating Temperature : 0o C to +85o C

• Storage Temperature : -55o C to +100o C
