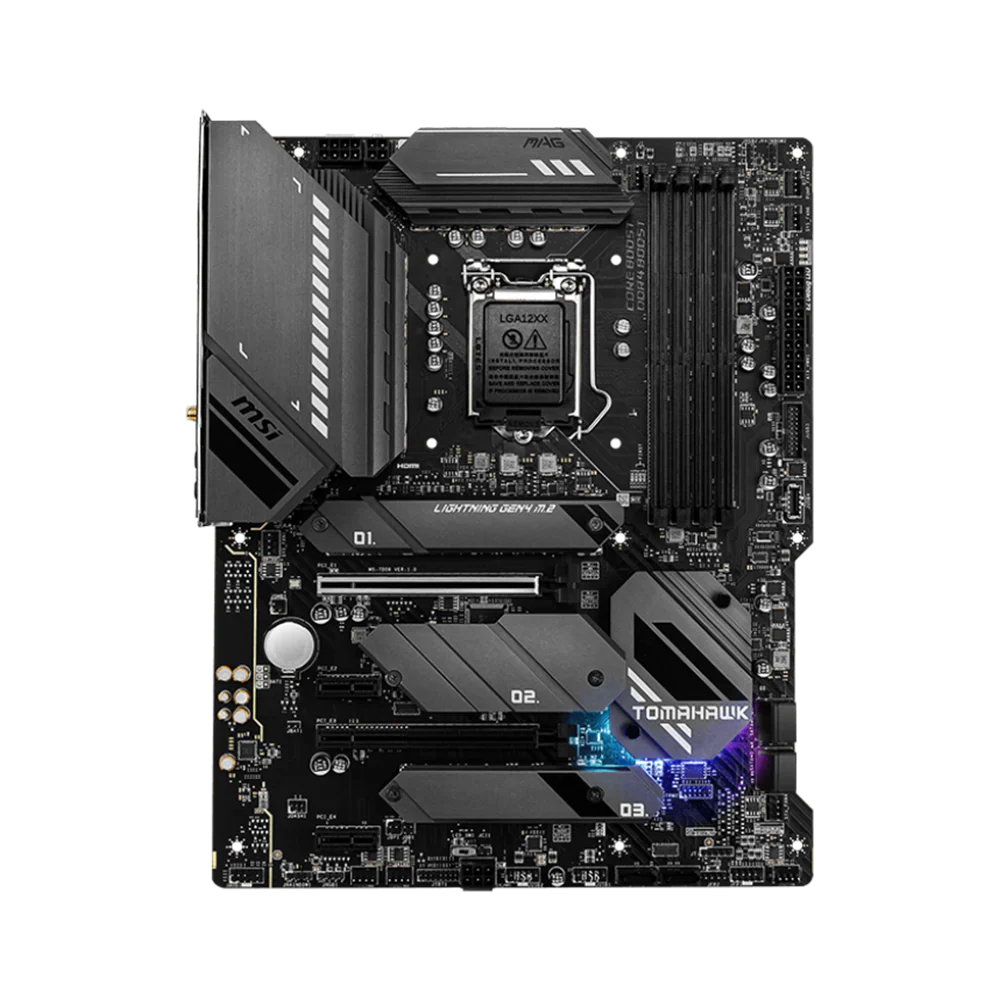

MSI MAG Z590 TOMAHAWK WIFI DDR4 ATX Motherboard - Black

MSI MAG Z590 TOMAHAWK WIFI DDR4 ATX Motherboard

MAG Z590 TOMAHAWK WIFI · Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket · Supports DDR4 Memory.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

FAST AND FUTURE-READY STORAGE

MSI Z590 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

Specifications

• CPU (MAX SUPPORT) : i9

• SOCKET : 1200

• CHIPSET : Intel® Z590 Chipset

• DDR4 MEMORY : 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

• MEMORY CHANNEL : Dual

• DIMM SLOTS : 4

• MAX MEMORY (GB) : 128

• PCI-E X16 : 2

• PCI-E X1 : 2

• SATAIII : 6

• M.2 SLOT : 3

• RAID : 0/1/5/10

• LAN : 1x Intel® I225-V 2.5G LAN

• WIFI & BLUETOOTH : Intel® Wi-Fi 6E AX210

• USB 3.2 PORTS (FRONT) : 1(Gen 2, Type C), 2(Gen 1, Type A)

• USB 3.2 PORTS (REAR) : 1(Gen 2x2, Type C), 1(Gen 2, Type A), 4(Gen 1, Type A)

• USB 2.0 PORTS (FRONT) : 4

• USB 2.0 PORTS (REAR) : 2

• AUDIO PORTS (REAR) : 5+ Optical S/PDIF (Realtek® ALC4080 Codec)

• DISPLAYPORT : 1

• HDMI : 1

• DIRECTX : 12

• FORM FACTOR : ATX

• CROSSFIRE : Y

• OPERATING SYSTEM : Support for Windows® 10 64-bit
