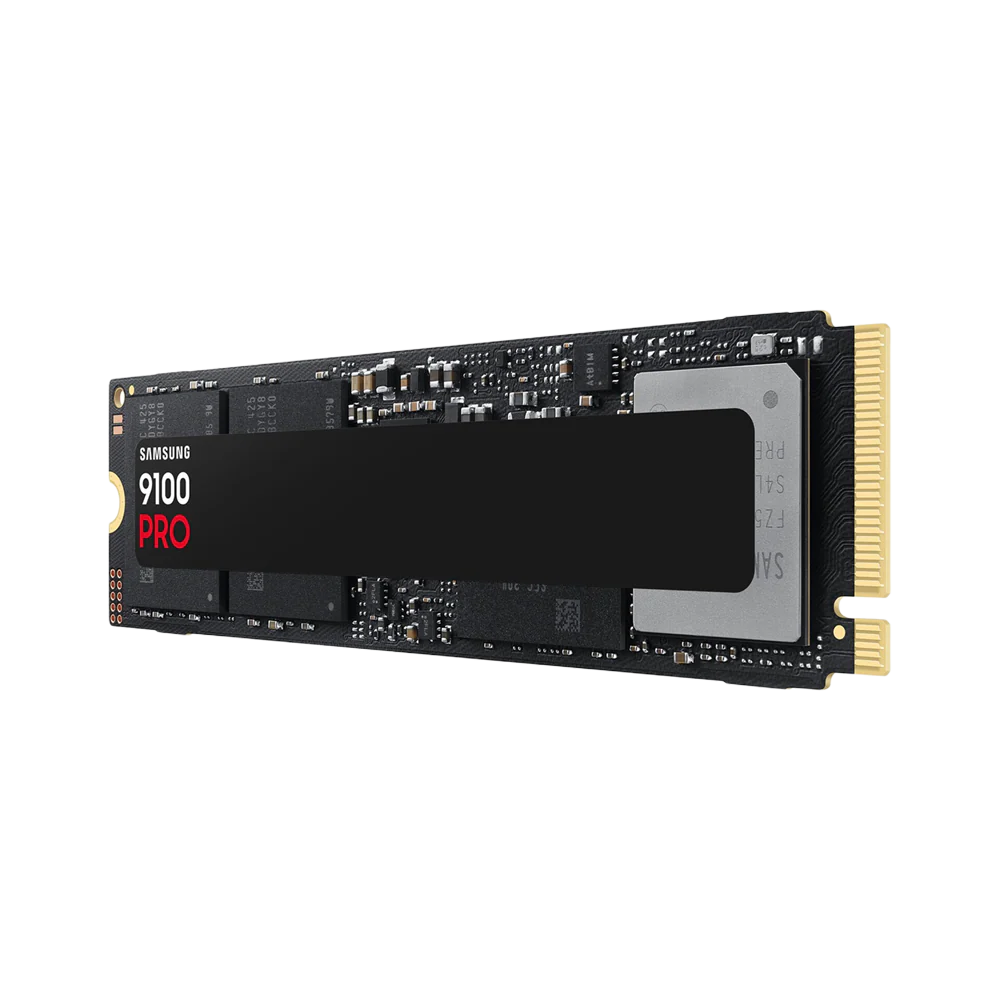

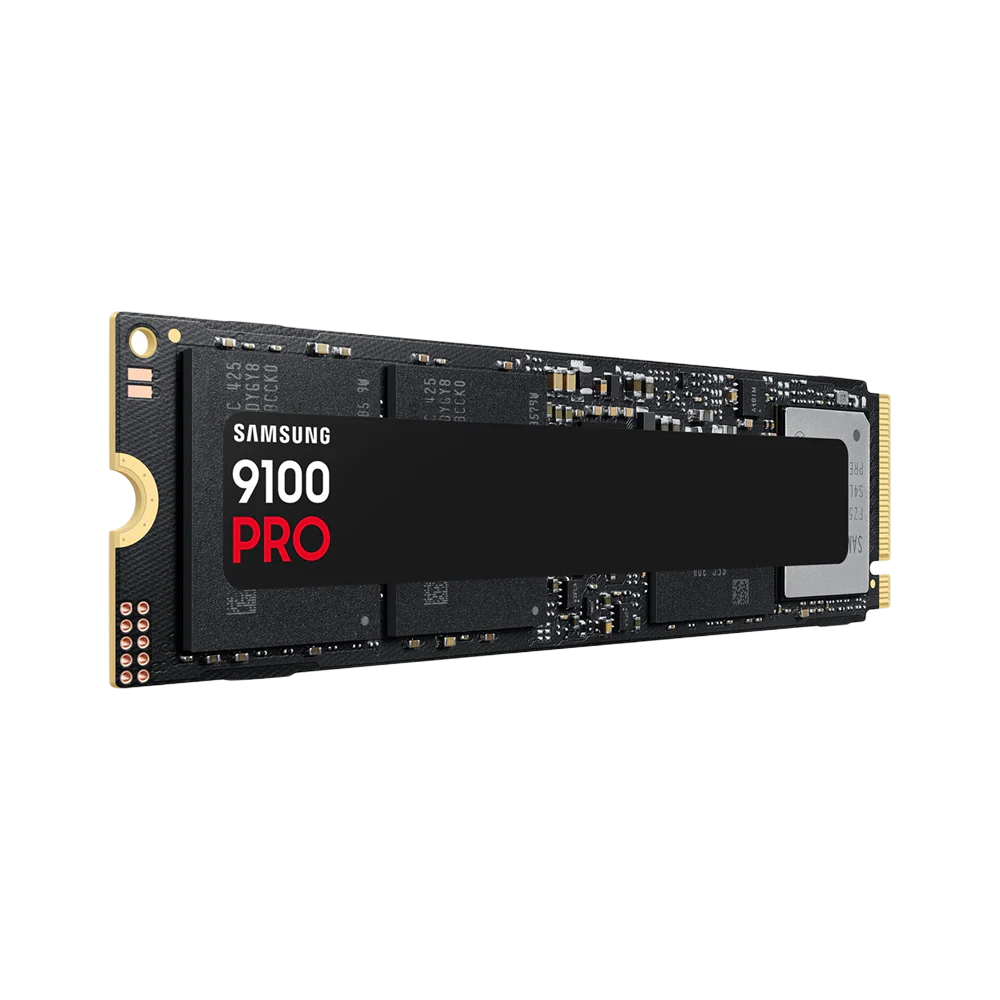

SAMSUNG 9100 PRO PCIe Gen 5x4 M.2 SSD (14,700 MB/s, 13,300 MB/s) - 1TB

Key Features:

• 1TB
• PCIe® 5.0 Performance : Max 14,700/13,300 MB/s sequential speeds, two times faster than 990 PRO.
• Expanded Experience : Supermassive capacity with exceptional compatibility.
• Innovative Power & Thermal Control : Up to 49% enhanced power efficiency with advanced thermal control.

Breakthrough PCIe® 5.0 performance
Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO1. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

Every task, powerfully parallel
Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Create with AI in an instant
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO’s exhilarating random read/write speeds up to 2,200K/2,600K IOPS1. Swift loads, smooth gameplay, seamless performance.

Exceptional everywhere
Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.

Extraordinary thermal efficiency
Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO1. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life
For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

Specifications

• Interface : PCIe® 5.0 x4, NVMe™ 2.0
• Sequential Read : Up to 14,700 MB/s * Performance may vary based on system hardware & configuration
• Sequential Write : Up to 13,300 MB/s * Performance may vary based on system hardware & configuration
• Application : Client PCs, Game Consoles
• Weight : Max 9.0g Weight
• Dimension (Pack: WxHxD) : Max 80.15 x Max 22.15 x Max 2.38 mm

General Feature

• Application : Client PCs, Game Consoles
• Rated Capacity : 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Form Factor : M.2 (2280)
• Interface : PCIe® 5.0 x4, NVMe™ 2.0
• Dimension (Pack: WxHxD) : Max 80.15 x Max 22.15 x Max 2.38 mm
• Weight : Max 9.0g Weight
• Storage Memory : Samsung V-NAND TLC
• Controller : Samsung in-house Controller
• Cache Memory : Samsung 1GB Low Power DDR4X SDRAM

Special Feature

• TRIM Support : Supported
• S.M.A.R.T Support : Supported
• GC (Garbage Collection) : Auto Garbage Collection Algorithm
• Encryption Support : AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support : Not supported
• Device Sleep Mode Support : Yes

Performance

• Sequential Read : Up to 14,700 MB/s * Performance may vary based on system hardware & configuration
• Sequential Write : Up to 13,300 MB/s * Performance may vary based on system hardware & configuration
• Random Read : Up to 1,850,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write : Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration
• Environment
• Average Power Consumption (system level) : Average: Read 7.6 W / Write 7.2 W* Actual power consumption may vary depending on system hardware & configuration
• Power consumption (Idle) : Typical 4 mW * Actual power consumption may vary depending on system hardware & configuration
• Power Consumption (Device Sleep) : Typical 3.3 mW * Actual power consumption may vary depending on system hardware & configuration
• Allowable Voltage : 3.3 V ± 5 % Allowable voltage
• Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)
• Operating Temperature : 0 - 70 ℃ Operating Temperature
• Shock : 1,500 G & 0.5 ms (Half sine)

Accessories

• Installation Kit : Not Available

Software

• Management SW : Magician Software for SSD management
