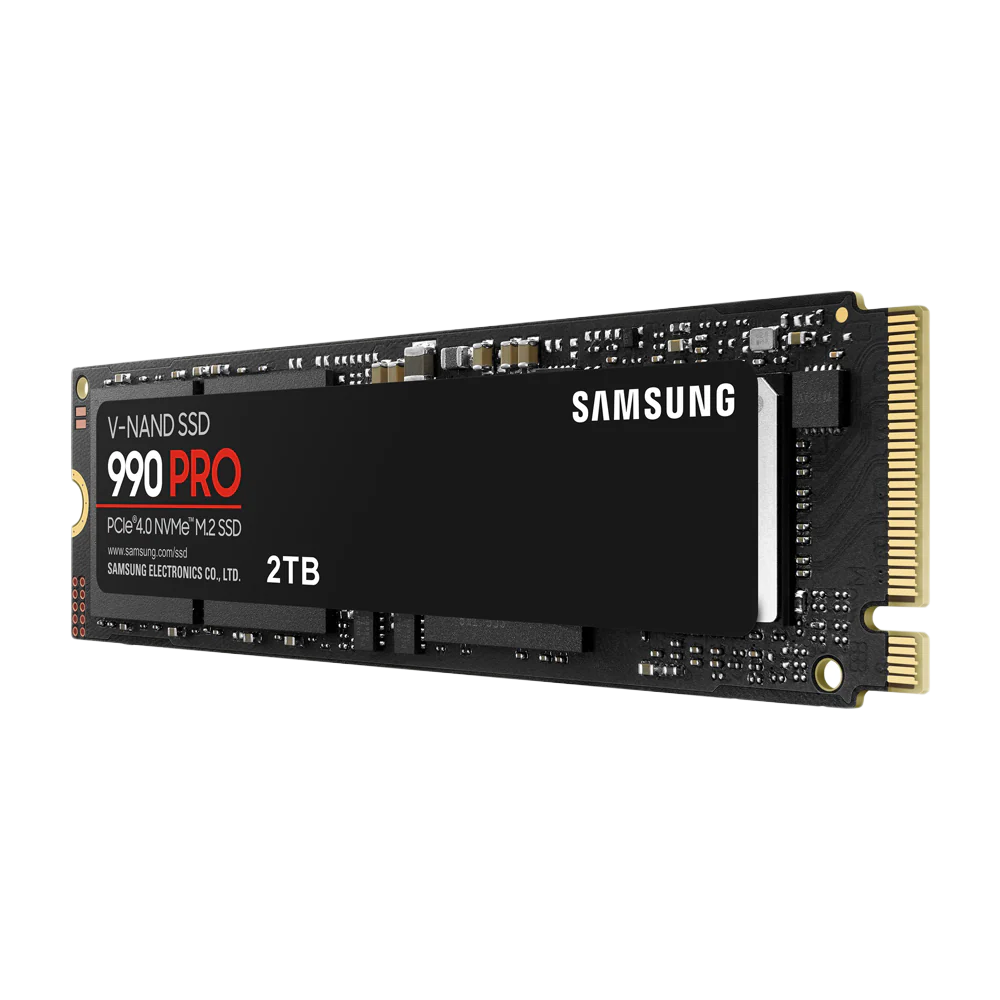

SAMSUNG 990 PRO PCIe 4.0 NVMe M.2 SSD (7,450 MB/s - 6,900 MB/s) - 2TB

Key Features:

• Interface : PCIe Gen 4.0 x4, NVMe 2.0
• Application : Client PCs, Game Consoles
• Capacity : 2,000GB (2TB)
• Form Factor : M.2 (2280)
• Interface : PCIe Gen 4.0 x4, NVMe 2.0
• Sequential Read : Up to 7,450 MB/s
• Sequential Write : Up to 6,900 MB/s

The Ultimate SSD
Reach max performance of PCIe® 4.0.Experience longer-lasting, opponent-blasting speed.The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.

PCIe 4.0 speed maximized
Huge speed boost. 40% and 55% faster random read/write speeds than 980 PRO - up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.0. Fly high in gaming, video and 3D editing, data analysis, and more.

Breakthrough power efficiency
More power-efficient performance.Higher performance usually consumes more power. But, 990 PRO uses less power with over 50% improved performance per Watt over 980 PRO.This low-power design makes max PCIe® 4.0 performance possible with optimal power efficiency.

Smart thermal solution
Speed beyond the heat.The nickel-coated controller and cutting-edge thermal control algorithm manage heat for unwavering performance.The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures optimal.

The champion maker
The best gameplay experience.A more than 55% improvement in random performance enables faster loads for ultimate gaming realism on PS5 and DirectStorage PC games.

Samsung Magician software
Unlock the full power of 990 PRO.Samsung Magician software's user-friendly suite of optimization tools always gets you the best SSD performance. Protect data, get updates, monitor drive health, and set up LED color combinations. Your personal SSD toolkit.

World's No.1 Flash Memory
Experience superior performance and reliability you only get from the world's No.1 flash memory brand since 2003. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.

Specifications

• Interface : PCIe Gen 4.0 x4, NVMe 2.0
• Application : Client PCs, Game Consoles
• Capacity : 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Form Factor : M.2 (2280)

General Feature

• Application : Client PCs, Game Consoles
• Capacity : 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Form Factor : M.2 (2280)
• Interface : PCIe Gen 4.0 x4, NVMe 2.0
• Dimension (WxHxD) : 80 x 22 x 2.3 mm
• Weight : Max 9.0g Weight
• Storage Memory : Samsung V-NAND 3-bit MLC
• Controller : Samsung in-house Controller
• Cache Memory : Samsung 2GB Low Power DDR4 SDRAM

Special Feature

• TRIM Support : Supported
• S.M.A.R.T Support : Supported
• GC (Garbage Collection) : Auto Garbage Collection Algorithm
• Encryption Support : AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support : Not supported
• Device Sleep Mode Support : Yes

Performance

• Sequential Read : Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
• Sequential Write : Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD32) : Up to 1,400,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD32) : Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD1) : Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD1) : Up to 80,000 IOPS * Performance may vary based on system hardware & configuration
• Environment : Average Power Consumption (system level)
• *Average: 5.5 W*Maximum: 8.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
• Power consumption (Idle) : Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration
• Allowable Voltage : 3.3 V ± 5 % Allowable voltage
• Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)
• Operating Temperature : 0 - 70 ℃ Operating Temperature
• Shock : 1,500 G & 0.5 ms (Half sine)

Accessories

• Installation Kit : Not Available

Software

• Management SW : Magician Software for SSD management
